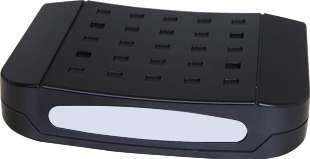

G.hn 2Gbps Coax MDU Wi-Fi Endpoint

Model : CES-862

Coax MDU Wi-Fi Endpoint
With In-Building Coax
Last Meters Distribution
Providing a Managed
2Gbps High Speed Data with
MIMO 2x2 11b/g/n/a/ac Wi-Fi

Triple Play by QoS and IPv6 Support
No additional network wiring …
The Most Powerful Coax MDU Solution with Remote Management and
Auto Provision.

Introduction

THE COAX MDU WIRELESS ENDPOINT, CES-862, IS THE BROADBAND ACCESS DEVICE OVER THE EXISTING COAXIAL CABLE WITH WI-FI EXTENSION.

NO ADDITIONAL NETWORK WIRING IS NECESSARY. CABLE OPERATORS MAY JUST USE THE EXISTING COAX WIRING OF CABLE OPERATORS OR IN THE MDU BUILDING, THEN BE READY TO PROVIDE THE BROADBAND TRIPLE-PLAY SERVICES TO SUBSCRIBERS..

LOW INITIAL DEPLOYMENT COST. THE LOW INITIAL COST CAN EXPAND THE SERVICE TO SMALL SCALE BUILDING WITH HIGHER SPEED THAN CMTS. DUAL SUPPORT OF IPV4 AND IPV6 PROVIDE THE FLEXIBILITY FOR OPERATORS.

WITH HIGH THROUGHPUT AND QOS, IT CAN OPTIMIZE TRIPLE PLAY SERVICES.

AUTO PROVISIONING AND REMOTE MANAGEMENT. IT MINIMIZES THE INSTALLATION AND SUPPORT COST.

THE UNIQUE ENDPOINT SERVICE CONTROL SUPPORTS SERVICE PROVIDERS WITH DIFFERENT SERVICE LEVELS

Features

  • Design for Operators Providing High Speed Data and Wi-Fi Service over Coax Network
  • EoC up to 1.8Gbps/1.6Gbps PHY/Throughput Rate as Distribution Backbone over Coax
  • Up to 80dB Attenuation on Coax Network
  • Two 10/100/1000M Gigabit Ethernet Ports
  • MIMO 2x2 11b/g/n/a/ac Dual Band Wi-Fi Access Point Support
  • Ethernet Loop Detection and Isolation
  • Filter Built-in to Eliminate Noise from TV
  • QoS Priority and Mapping Support
  • Tag VLAN Configuration
  • Service and Bandwidth Control
  • IGMP Snooping Control
